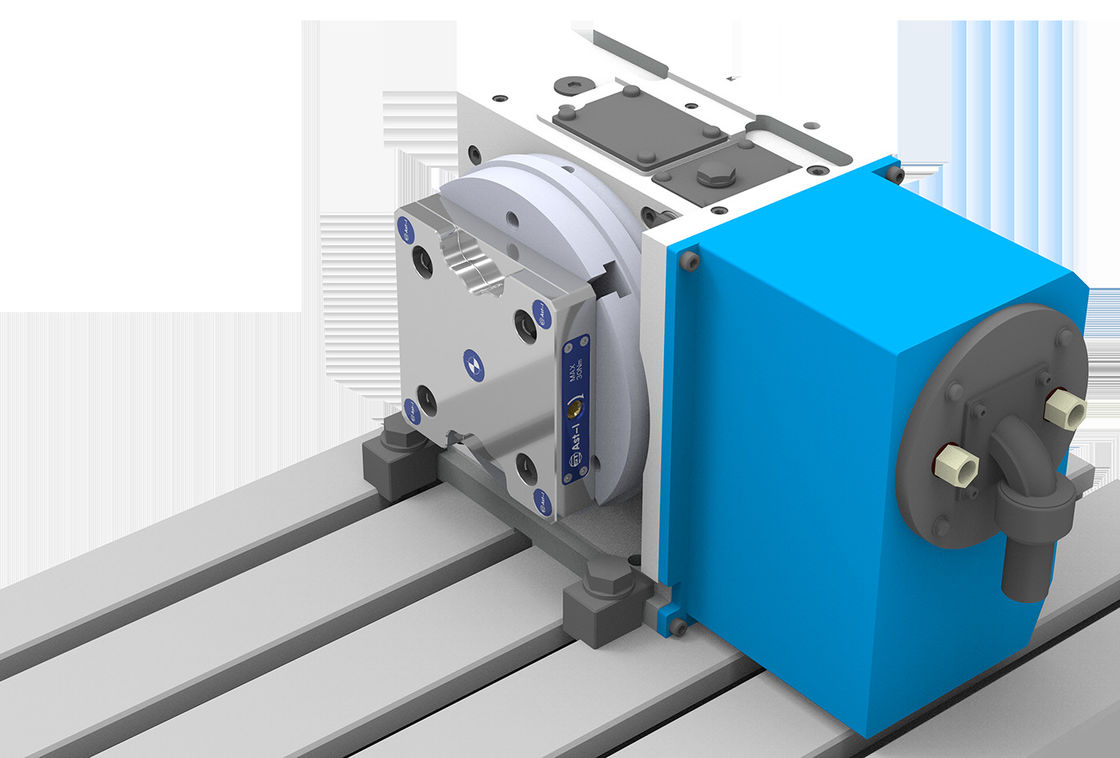

Steel Magnetic CNC Workholding Fixture 4 Axis Manual Zero Point Positioning

Name: Steel Magnetic CNC Workholding Fixture 4 Axis Manual Zero Point Positioning
Brand: Dongguan LiHeng machinery industry co.,ltd
SKU: SK96-190
Price: 395.00 USD
Availability: InStock

جميع المنتجات

Axis Fixtures
(44)

CNC Workholding Fixture
(21)

Dovetail Fixture
(26)

Zero Point Fixture
(39)

Self Centering Vise
(20)

5 Axis Vise
(11)

CNC Pull Studs
(9)

CNC Machining Parts
(33)

Pneumatic Air Vise
(10)

شهادة

الصين Dongguan LiHeng machinery industry co.,ltd الشهادات

ابن دردش الآن

Steel Magnetic CNC Workholding Fixture 4 Axis Manual Zero Point Positioning

صورة كبيرة : Steel Magnetic CNC Workholding Fixture 4 Axis Manual Zero Point Positioning

تفاصيل المنتج:

مكان المنشأ:	الصين
اسم العلامة التجارية:	AST
رقم الموديل:	SK96-190

شروط الدفع والشحن:

الحد الأدنى لكمية:	1
تفاصيل التغليف:	20021060 مللي متر
وقت التسليم:	5-8 أيام عمل
شروط الدفع:	تي/تي

اتصل

Steel Magnetic CNC Workholding Fixture 4 Axis Manual Zero Point Positioning

وصف

اسم:	تركيبات العمل المغناطيسي	مادة:	فُولاَذ
مقاس:	150 × 150 × 30 ملم	التكرار:	في حدود 0.005 ملم
سمات:	تبادل مرن بسرعة	تصنيع المعدات الأصلية:	يدعم
إبراز:	Steel CNC Workholding Fixture,CNC Workholding Fixture 4 Axis,Magnetic Workholding Fixtures , CNC Workholding Fixture 4 Axis , Magnetic Workholding Fixtures

Manual Zero Point Positioning Quick-Change Single Plates System For 4 Axis Cnc SK96-S190

The clamping edge of this zero-point plate allows it to be mounted on essentially all machine tables if clamps are used for this purpose.

The Quick•Point 96 variant is also popular as an interface on pallet automations or on your own customized clamping fixture.

Its mounting holes are also suitable for the Quick•Point riser made of aluminium, which can be used to improve accessibility for 5-sided machining.

No need to disassemble and calibrate time.

Maximize changeout efficiency with zero point quick exchange system

Size:150x150x30mm
Repeat position:0.005mm
Locking force:22KN (4pcs pull stud)
Material: steel
Weight:4.0Kg

Steel Magnetic CNC Workholding Fixture 4 Axis Manual Zero Point Positioning 0

Steel Magnetic CNC Workholding Fixture 4 Axis Manual Zero Point Positioning 2

Steel Magnetic CNC Workholding Fixture 4 Axis Manual Zero Point Positioning 3

Steel Magnetic CNC Workholding Fixture 4 Axis Manual Zero Point Positioning 4

Steel Magnetic CNC Workholding Fixture 4 Axis Manual Zero Point Positioning 6
